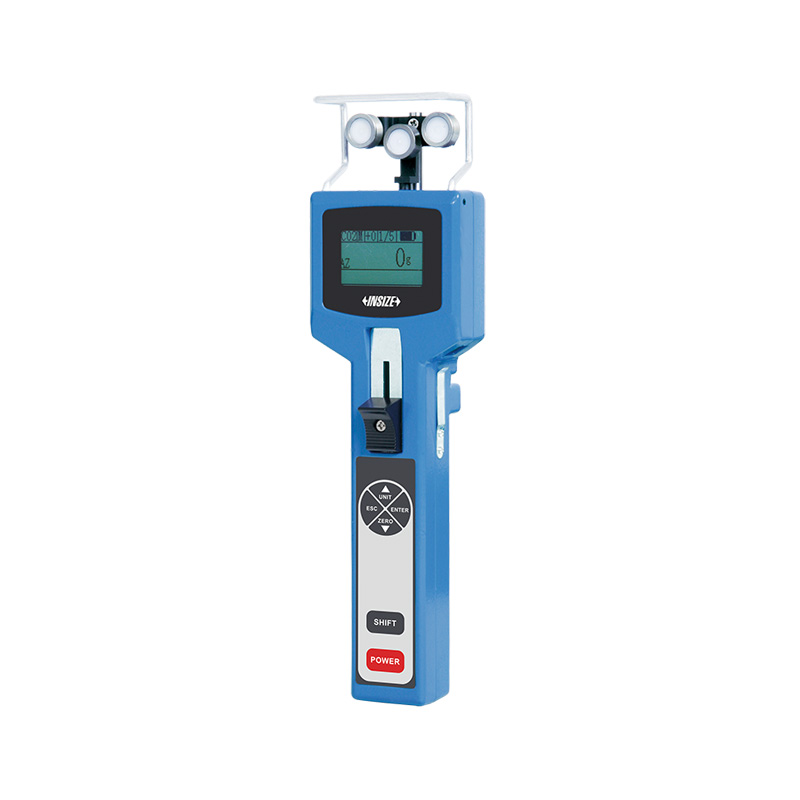

Wire Tension Meters
Code: ISF-DT Series
Suitable for testing the tension of stranding machines, winding machines, wire cutting machines, carbon fiber winding equipments, fiber optic winding equipments, fiber optic cable production equipments, glass fiber winding equipments, steel cord production equipments, steel wire rope production equipments and so on
Automatic zeroing, manual zeroing also possible
Memory function for recording the current real-time value (up to 200 data), for recording phase data (max., min., average)
10 calibration channels, 6 groups of calibration points to choose from
| Code | Accuracy | Range of test force |
|---|---|---|
| ISF-DT200 | ±2%FS | 2.0~200.0cN |
| ISF-DT500 | ±2%FS | 5.0~500.0cN |
| ISF-DT1000 | ±2%FS | 10~1000cN |
| ISF-DT2000 | ±2%FS | 20~2000cN |
| ISF-DT2500 | ±2%FS | 25~2500cN |
| ISF-DT5000 | ±2%FS | 50~5000cN |
| ISF-DT10K | ±2%FS | 1.0~100.0N |
| ISF-DT20K | ±2%FS | 2.0~200.0N |
| ISF-DT30K | ±2%FS | 3.0~300.0N |
| ISF-DT50K | ±2%FS | 5.0~500.0N |
| ISF-DT60K | ±2%FS | 6.0~600.0N |
| ISF-DT100K | ±2%FS | 10~1000N |
| ISF-DT200K | ±2%FS | 20~2000N |
