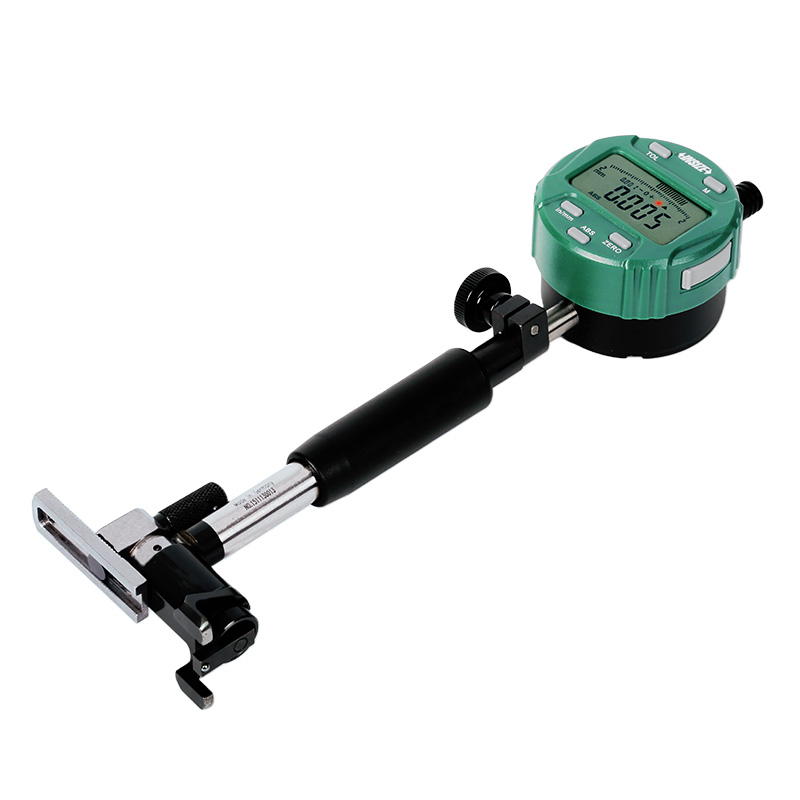

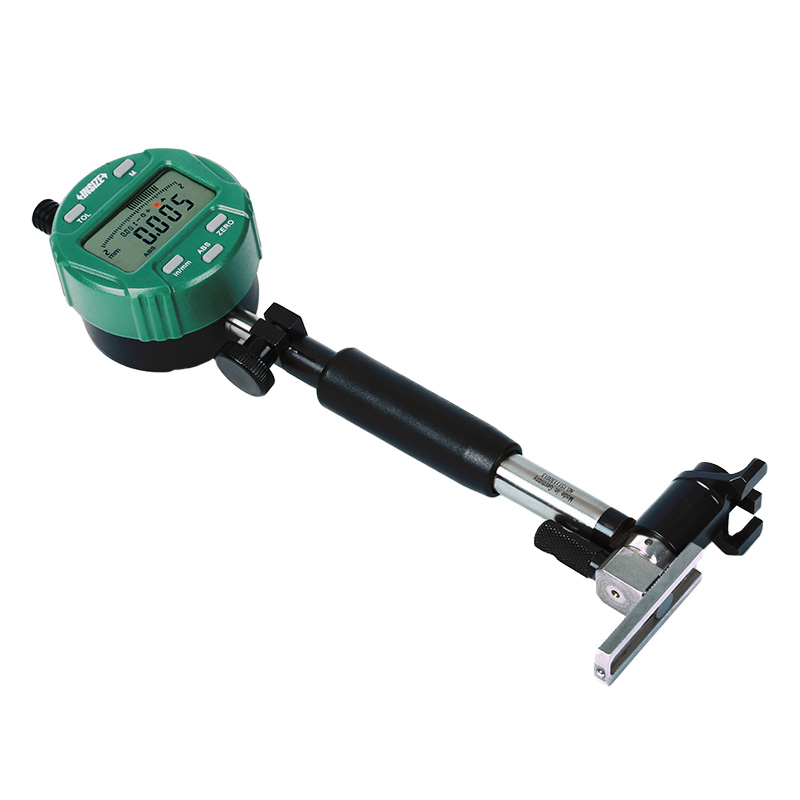

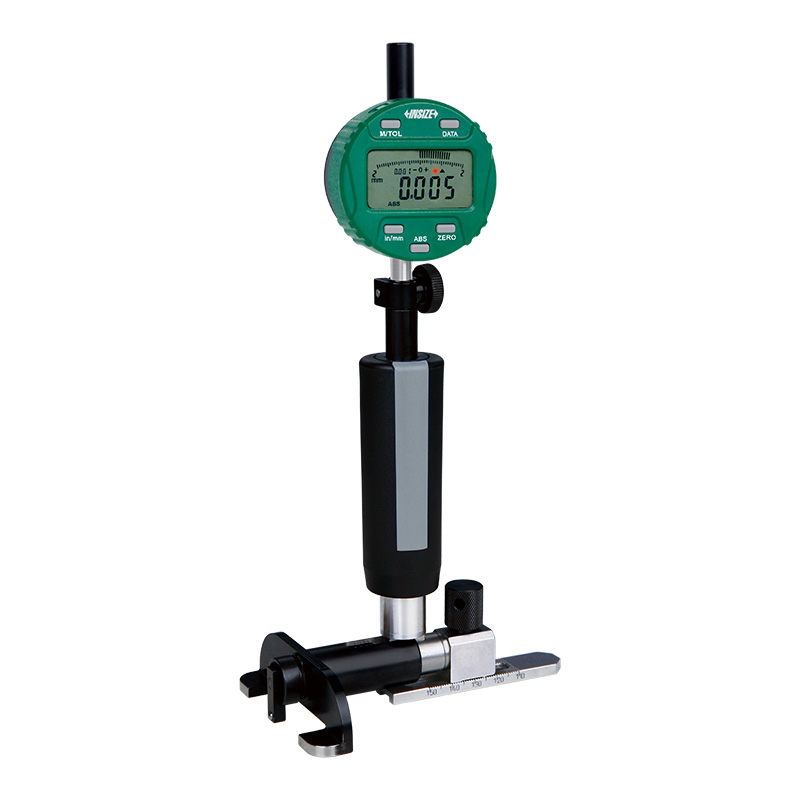

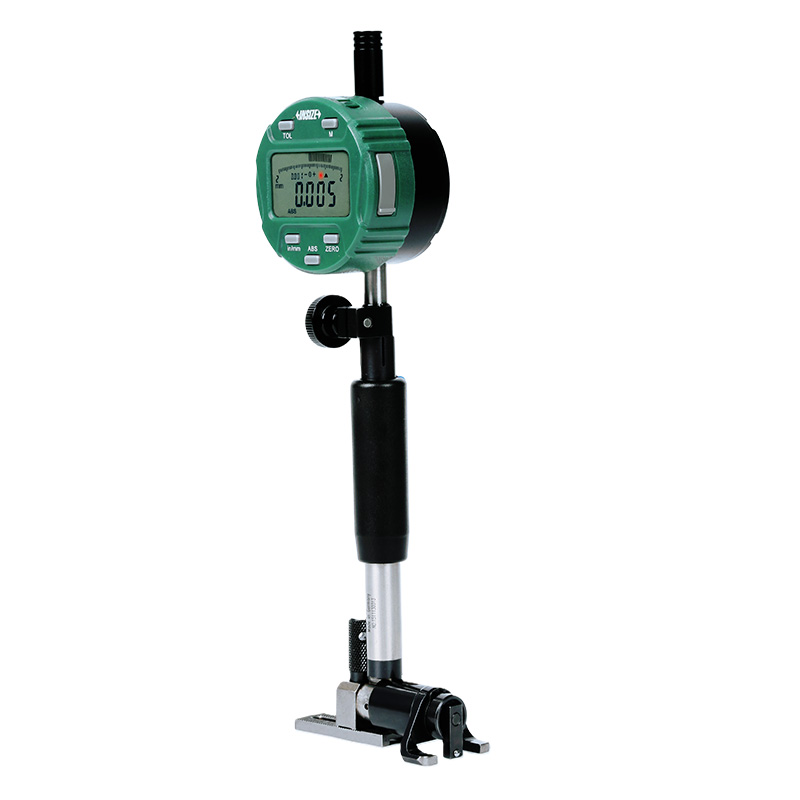

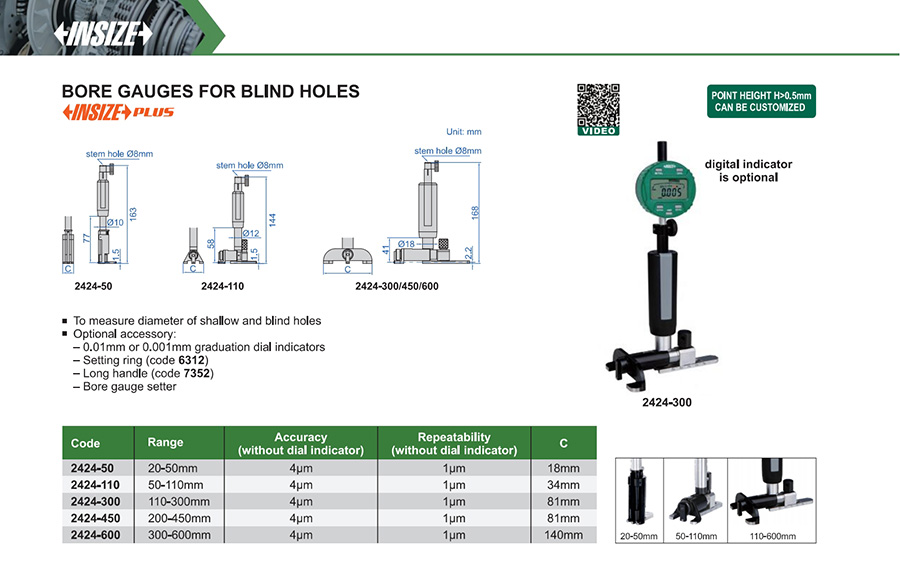

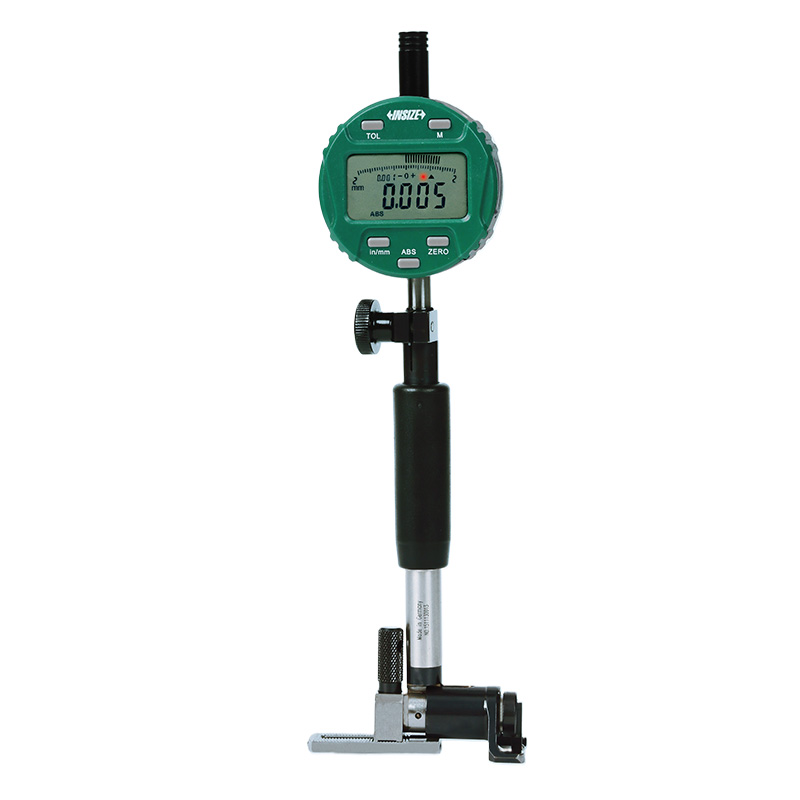

Bore Gauges For Blind Holes
Code: 2424
To measure the diameter of shallow and blind holes
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2424-50 | 20-50mm | 4μm | 1μm |
| 2424-110 | 50-110mm | 4μm | 1μm |
| 2424-300 | 110-300mm | 4μm | 1μm |
| 2424-450 | 200-450mm | 4μm | 1μm |
| 2424-600 | 300-600mm | 4μm | 1μm |
View the complete
product specifications
