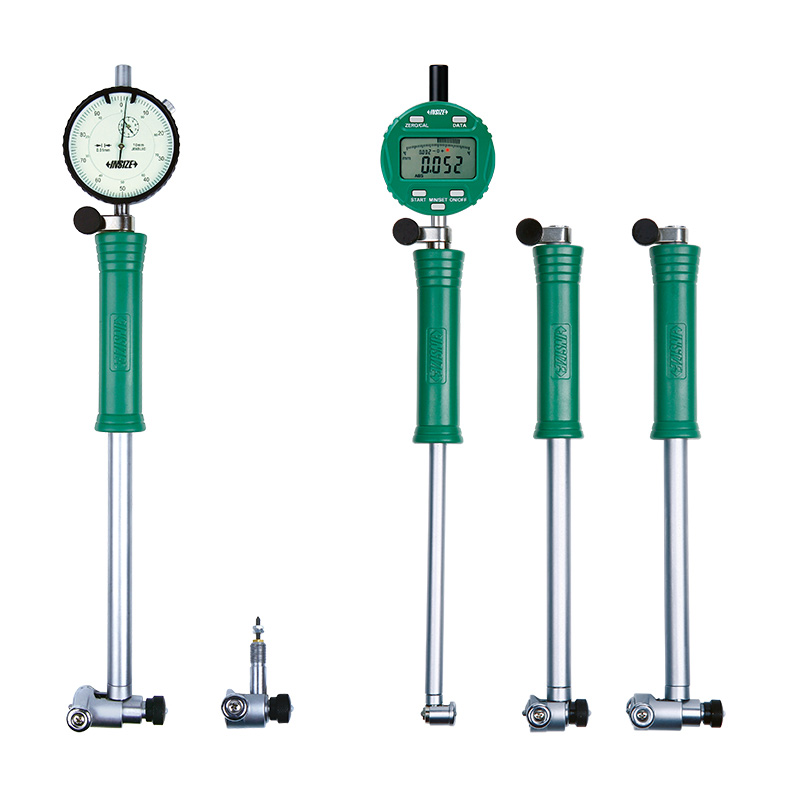

Bore Gauge Sets (With Dial Indicator)
Code: 2824/2724
Optional accessory: setting ring (code 6312), long handle (code 7351), bore gauge setter

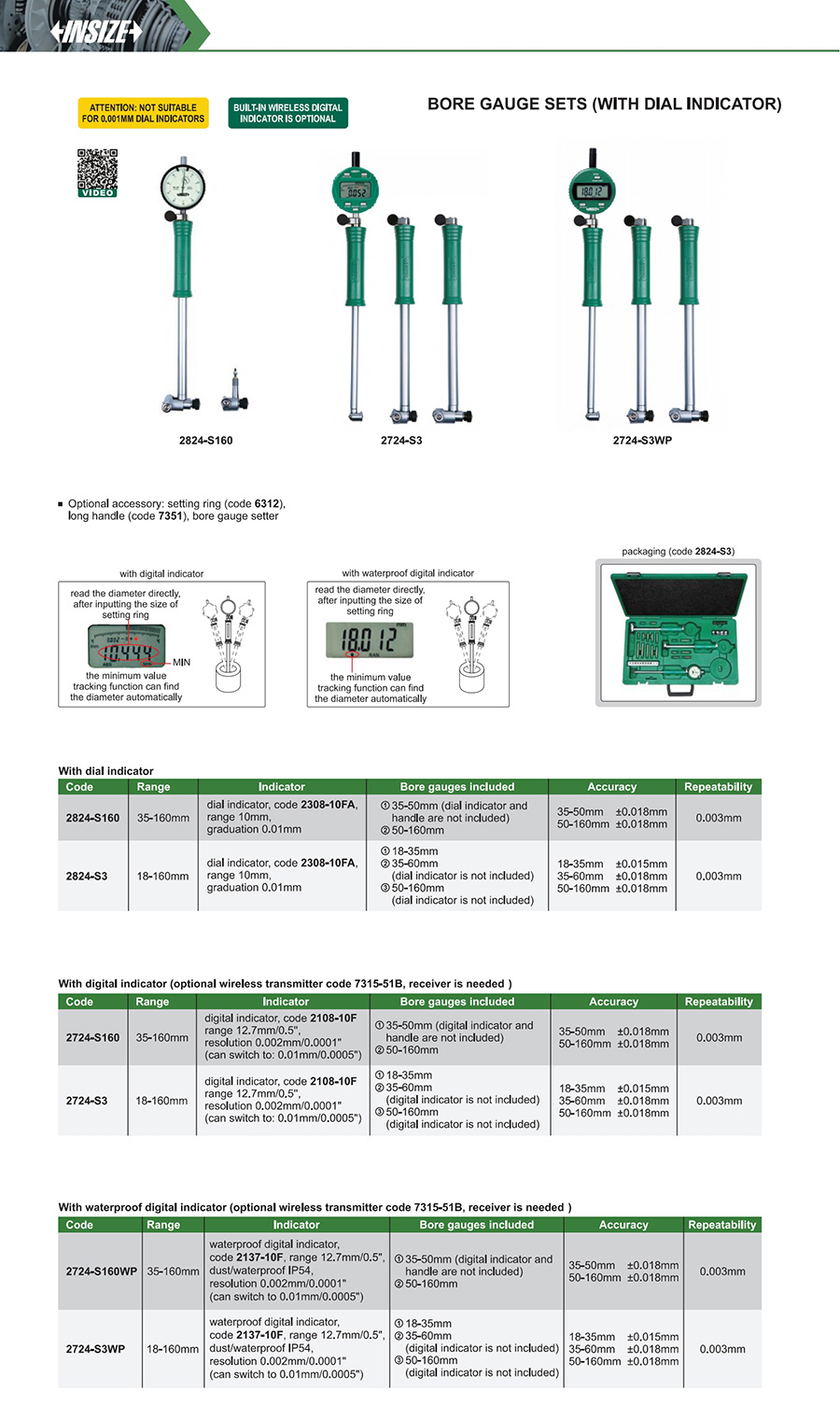

| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2824-S160 | 35-160mm | 35-50mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
| 2824-S3 | 18-160mm | 18-35mm, ±0.015mm, 35-60mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
| 2724-S160 | 35-160mm | 35-50mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
| 2724-S3 | 18-160mm | 18-35mm, ±0.015mm, 35-60mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
| 2724-S160WP | 35-160mm | 35-50mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
| 2724-S3WP | 18-160mm | 18-35mm, ±0.015mm, 35-60mm, ±0.018mm, 50-160mm, ±0.018mm | 0.003mm |
