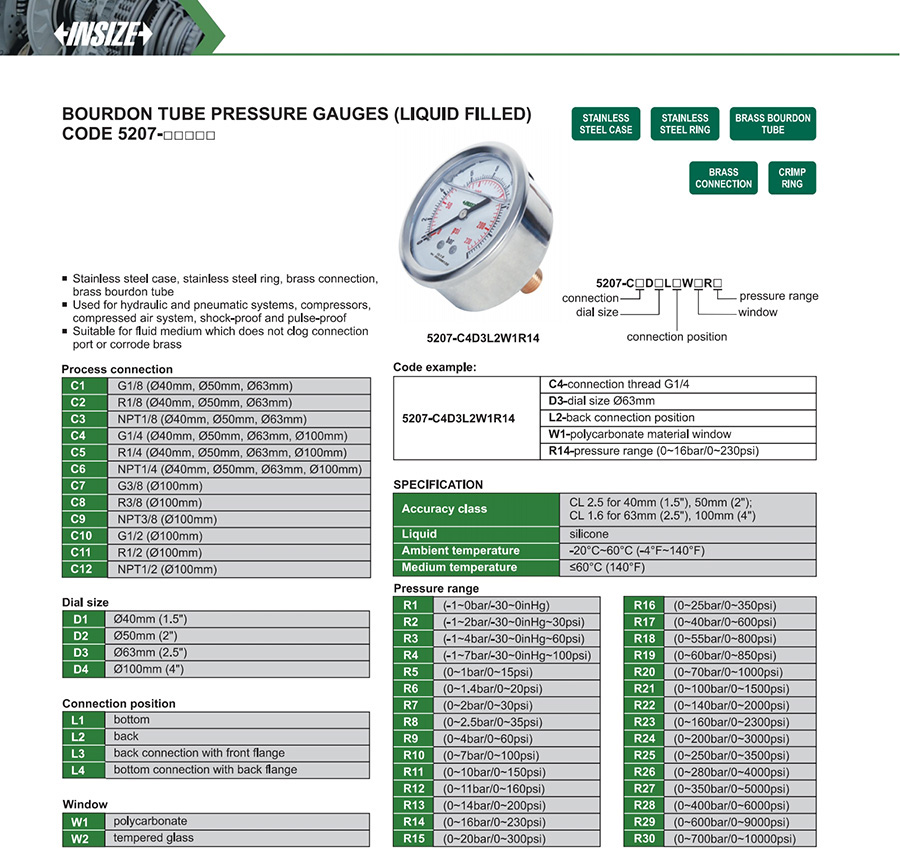

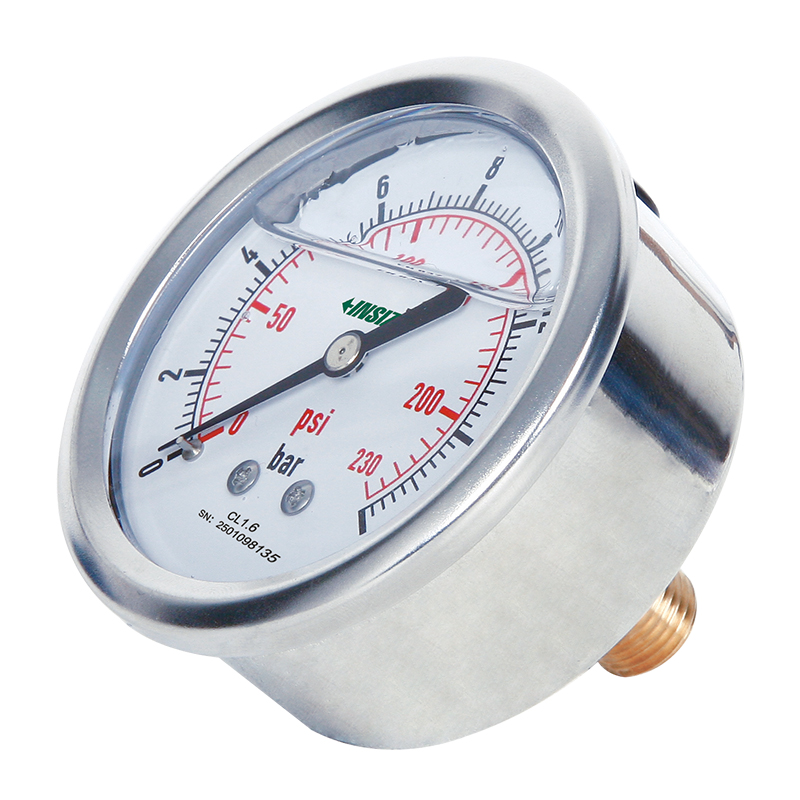

Bourdon Tube Pressure Gauges (Liquid Filled)
Code: 5207-□□□□□
Stainless steel case, stainless steel ring, brass connection, brass bourdon tube
Used for hydraulic and pneumatic systems, compressors, compressed air system, shock-proof and pulse-proof
Suitable for fluid medium which does not clog connection port or corrode brass
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5207-□□□□□ | G1/8, R1/8, NPT1/8, G1/4, R1/4, NPT1/4, G3/8, R3/8, NPT3/8, G1/2, R1/2, NPT1/2 | Ø40mm, Ø50mm, Ø63mm, Ø100mm | bottom, back, back connection with front flange, bottom connection with back flange | polycarbonate, tempered glass |
