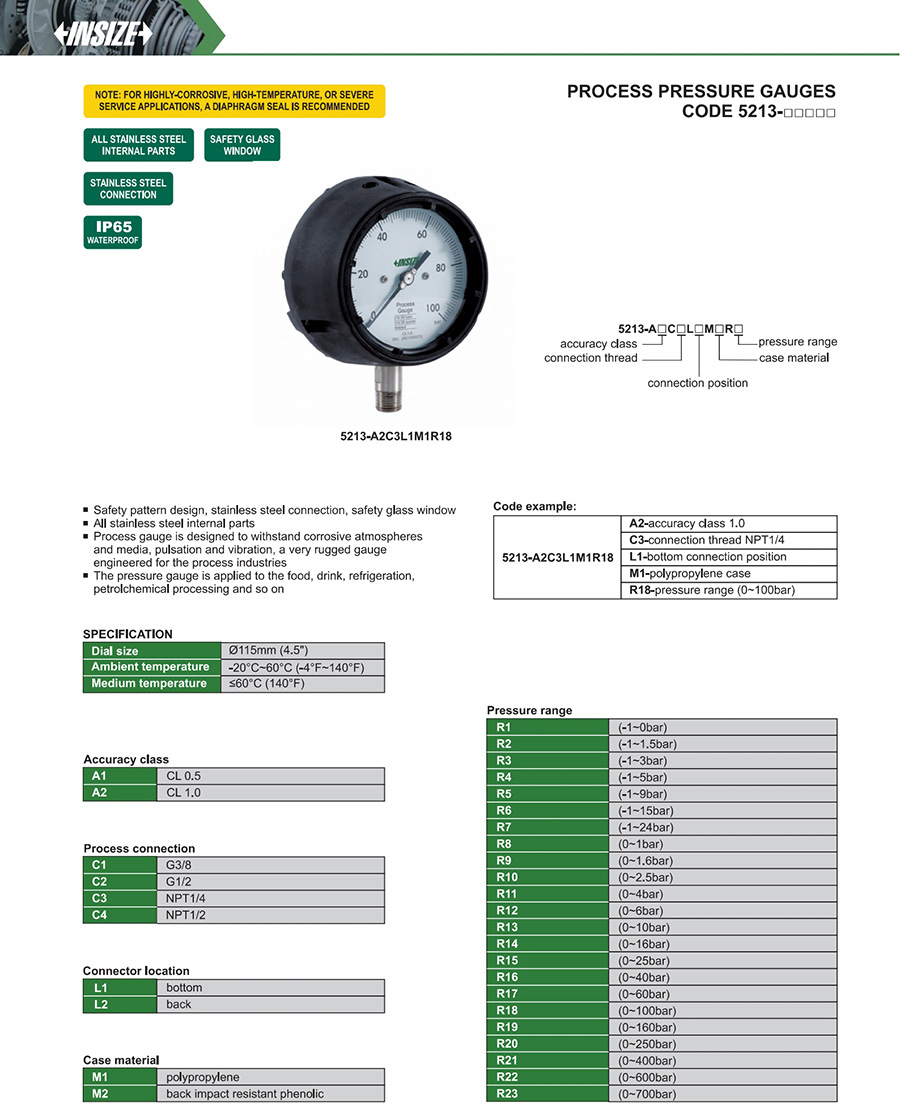

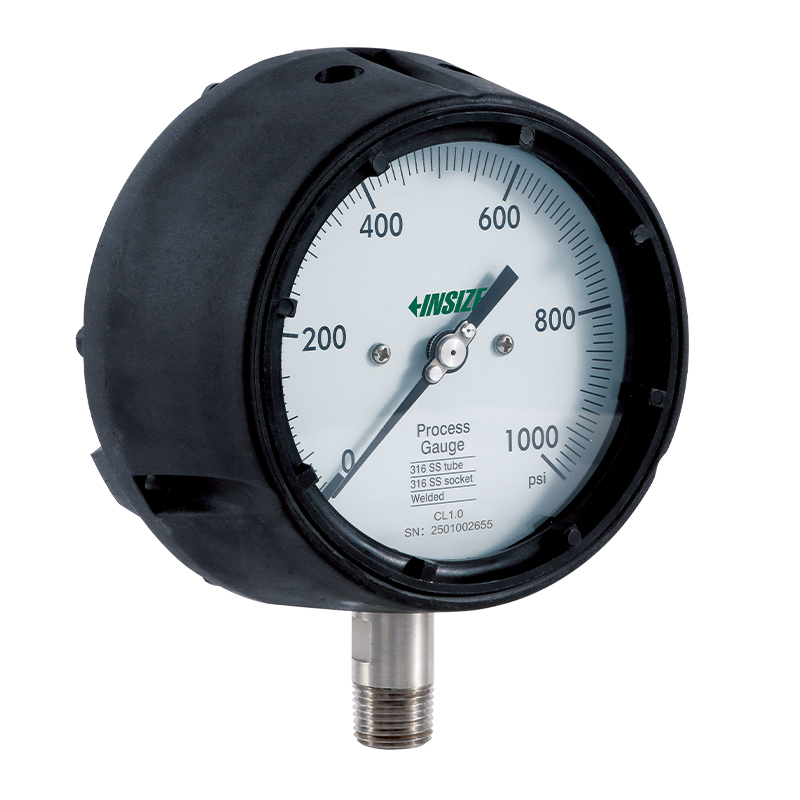

Process Pressure Gauges
Code: 5213-□□□□□
Safety pattern design, stainless steel connection, safety glass window
All stainless steel internal parts
Process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration, a very rugged gauge engineered for the process industries
The pressure gauge is applied to the food, drink, refrigeration, petrolchemical processing and so on
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5213-□□□□□ | G3/8, G1/2, NPT1/4, NPT1/2 | Ø115mm | bottom, back | safety glass |
