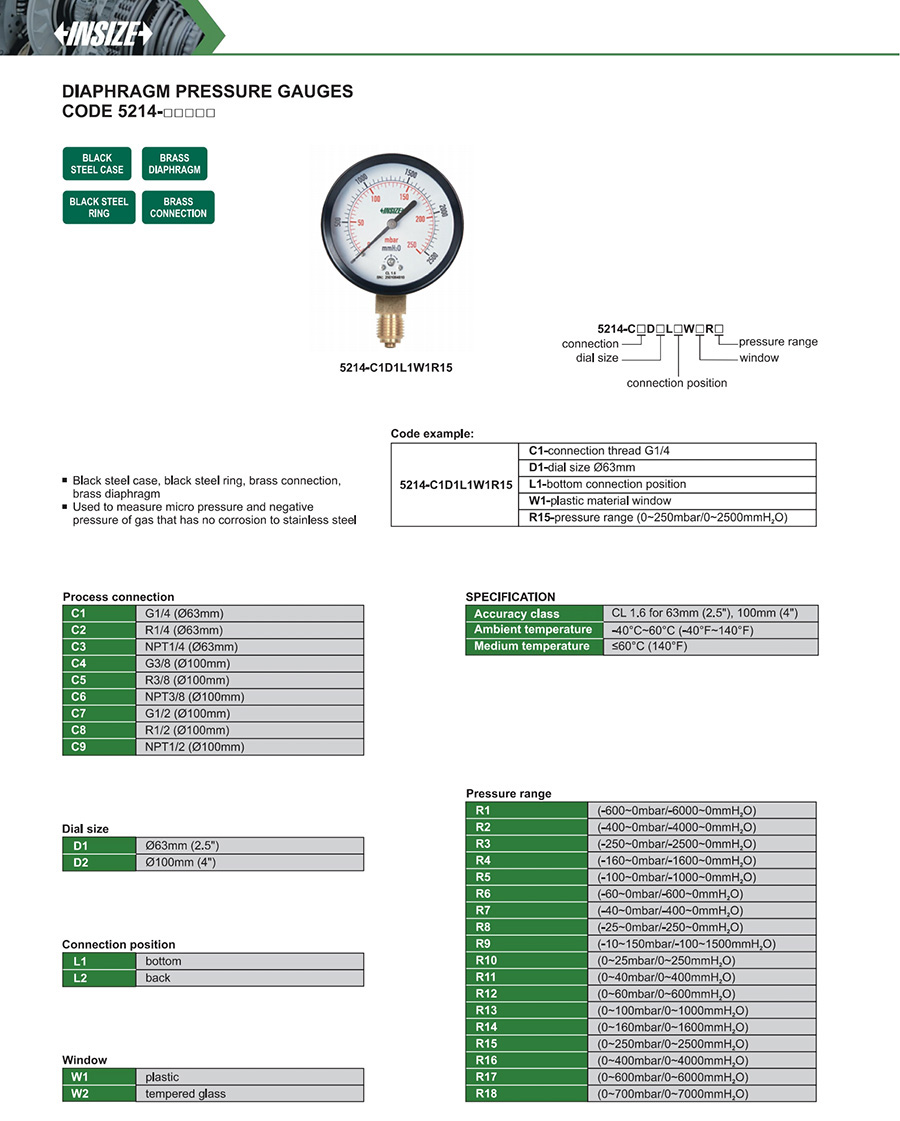

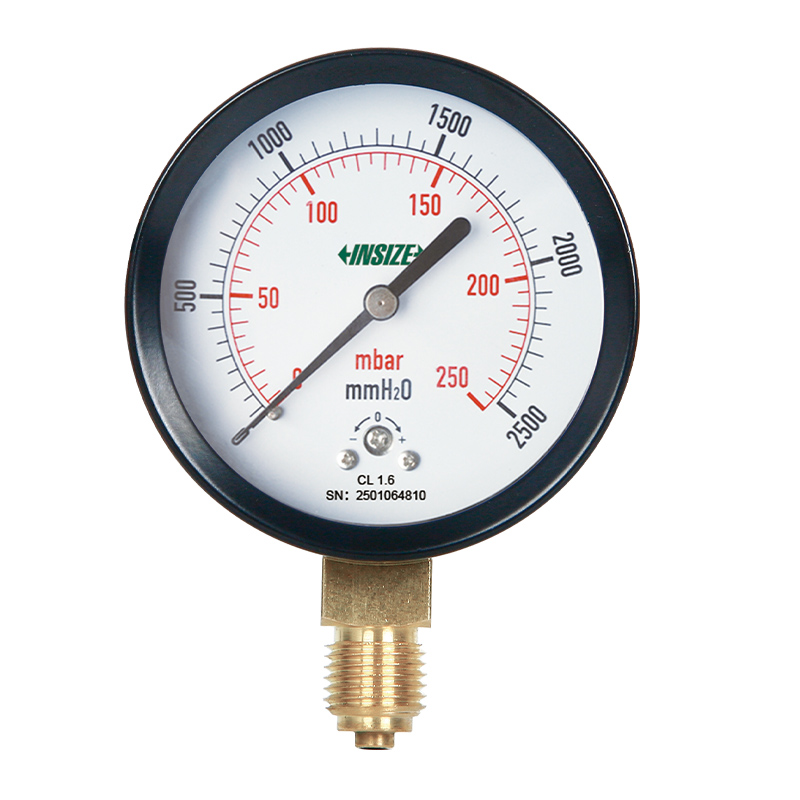

Diaphragm Pressure Gauges
Code: 5214-□□□□□
Black steel case, black steel ring, brass connection, brass diaphragm
Used to measure micro pressure and negative pressure of gas that has no corrosion to stainless steel
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5214-□□□□□ | G1/4, R1/4, NPT1/4, G3/8, R3/8, NPT3/8, G1/2, R1/2, NPT1/2 | Ø63mm, Ø100mm | bottom, back | plastic, tempered glass |
