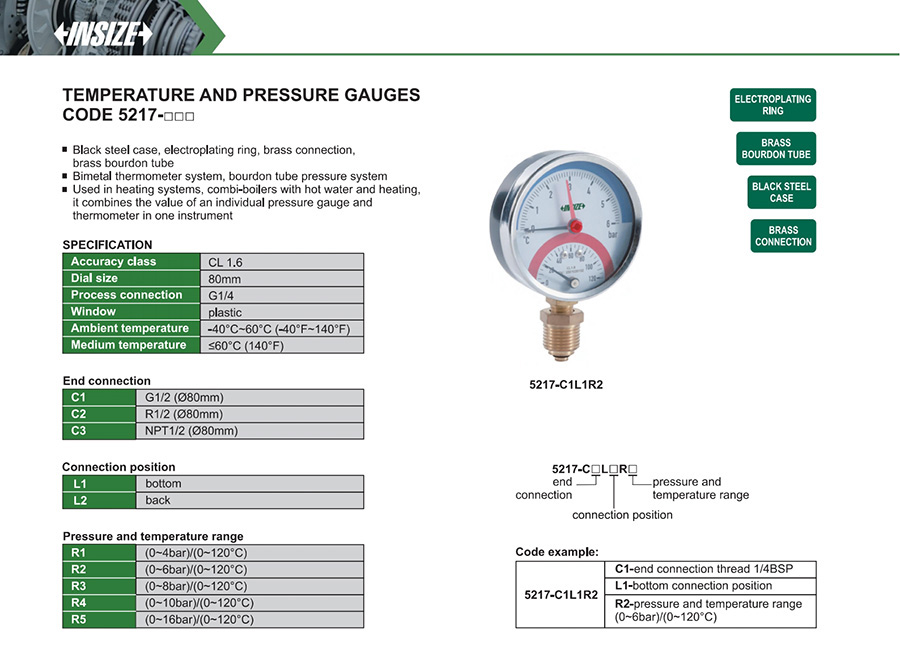

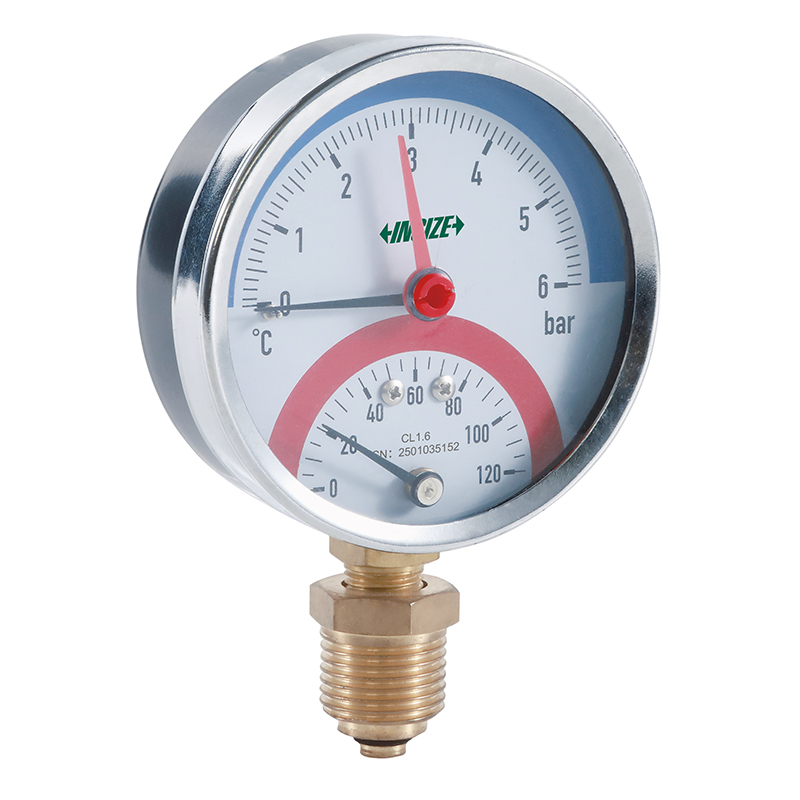

Temperature And Pressure Gauges
Code: 5217-□□□
Black steel case, electroplating ring, brass connection, brass bourdon tube
Bimetal thermometer system, bourdon tube pressure system
Used in heating systems, combi-boilers with hot water and heating, it combines the value of an individual pressure gauge and thermometer in one instrument
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5217-□□□ | process: G1/4, end: G1/2, R1/2, NPT1/2 | Ø80mm | bottom, back | plastic |
