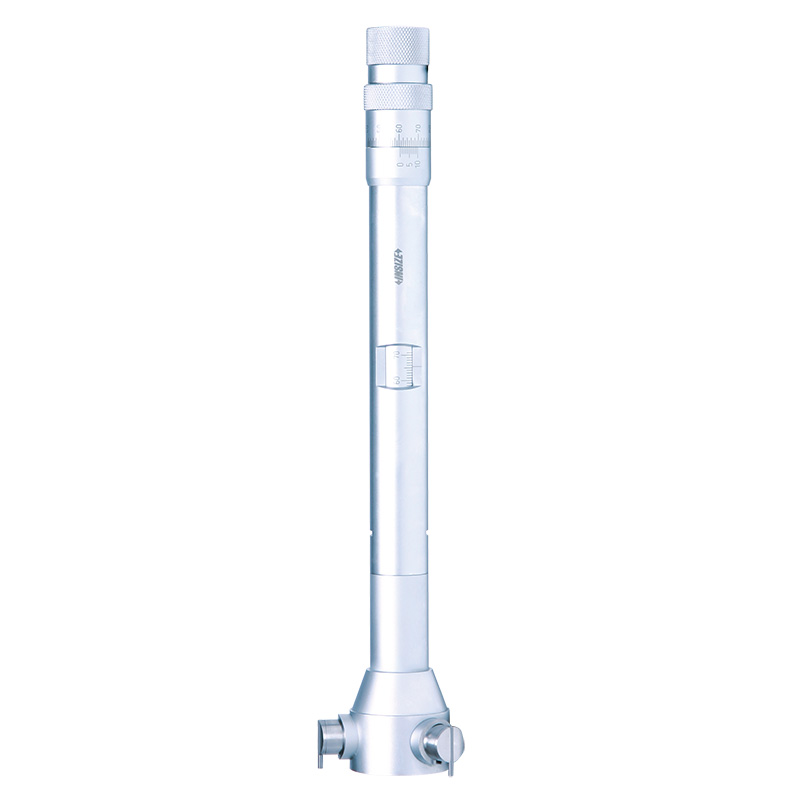

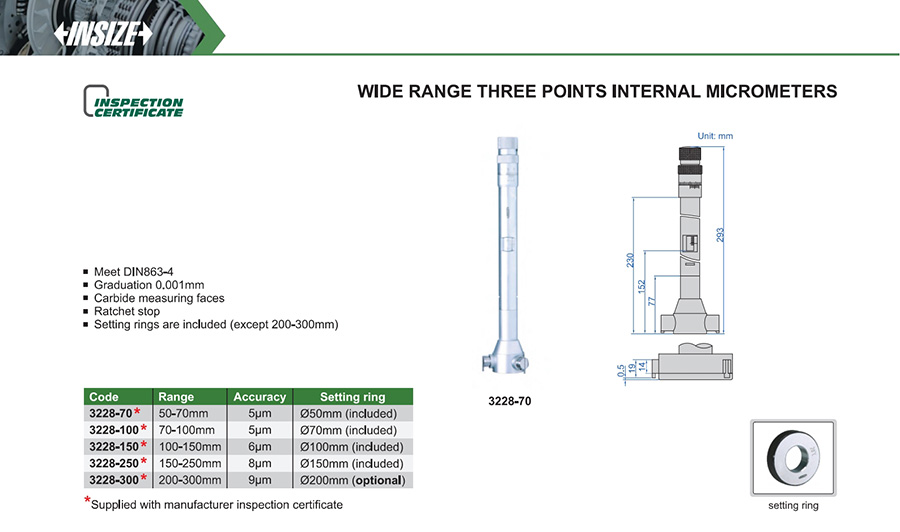

Wide Range Three Points Internal Micrometers
Code: 3228
Meet DIN863-4
Carbide measuring faces
Ratchet stop
Setting rings are included (except 200-300mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3228-70 | 50-70mm | 5μm | 0.001mm |
| 3228-100 | 70-100mm | 5μm | 0.001mm |
| 3228-150 | 100-150mm | 6μm | 0.001mm |
| 3228-250 | 150-250mm | 8μm | 0.001mm |
| 3228-300 | 200-300mm | 9μm | 0.001mm |
