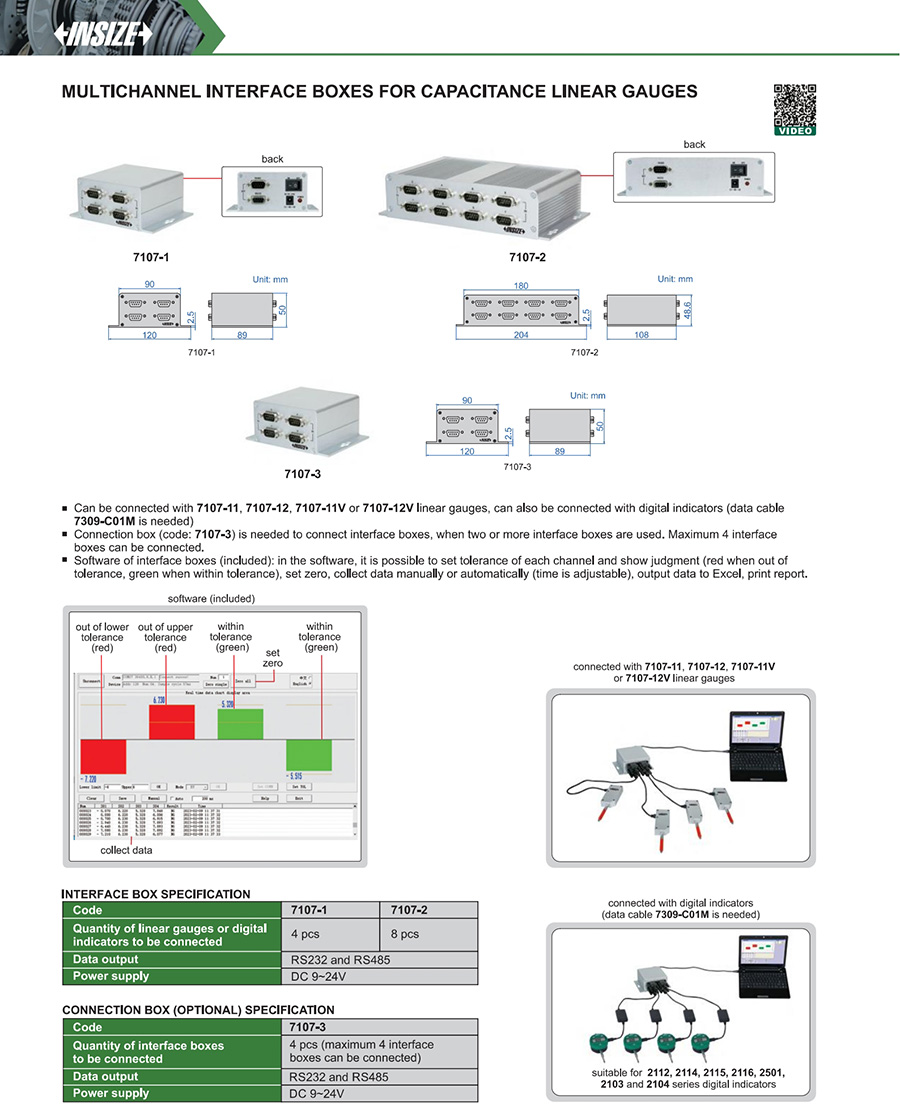

Multichannel Interface Boxes For Capacitance Linear Gauges
Code: 7107-1/2/3
Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gauges, can also be connected with digital indicators (data cable 7309-C01M is needed)
Connection box (code: 7107-3) is needed to connect interface boxes, when two or more interface boxes are used. Maximum 4 interface boxes can be connected.
| Code | Quantity of linear gauge or digital indicator to be connected | Data output |
|---|---|---|

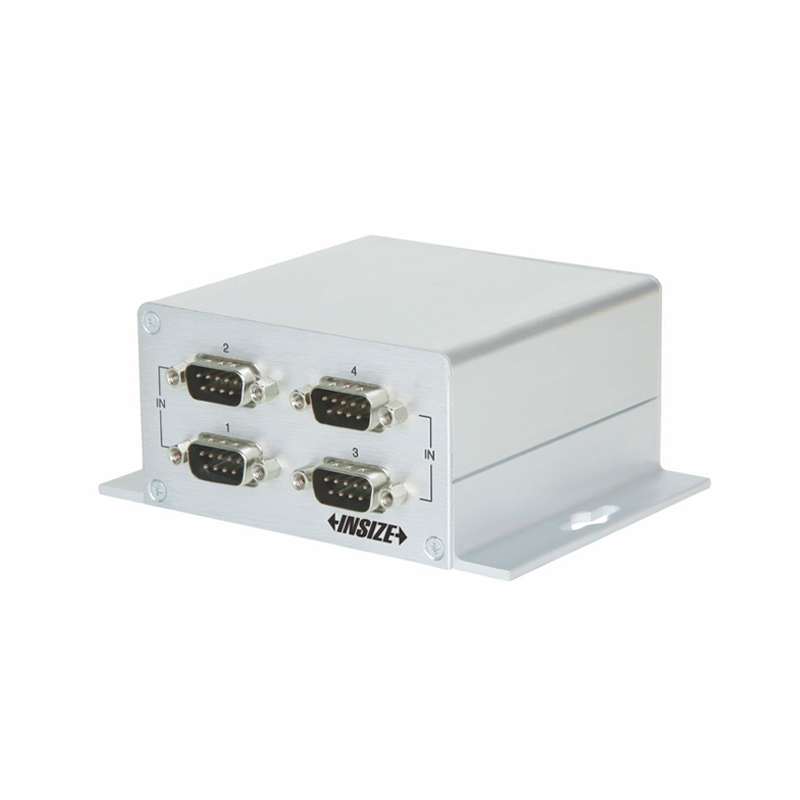

| 7107-1 | 4 pcs | RS232 and RS485 |

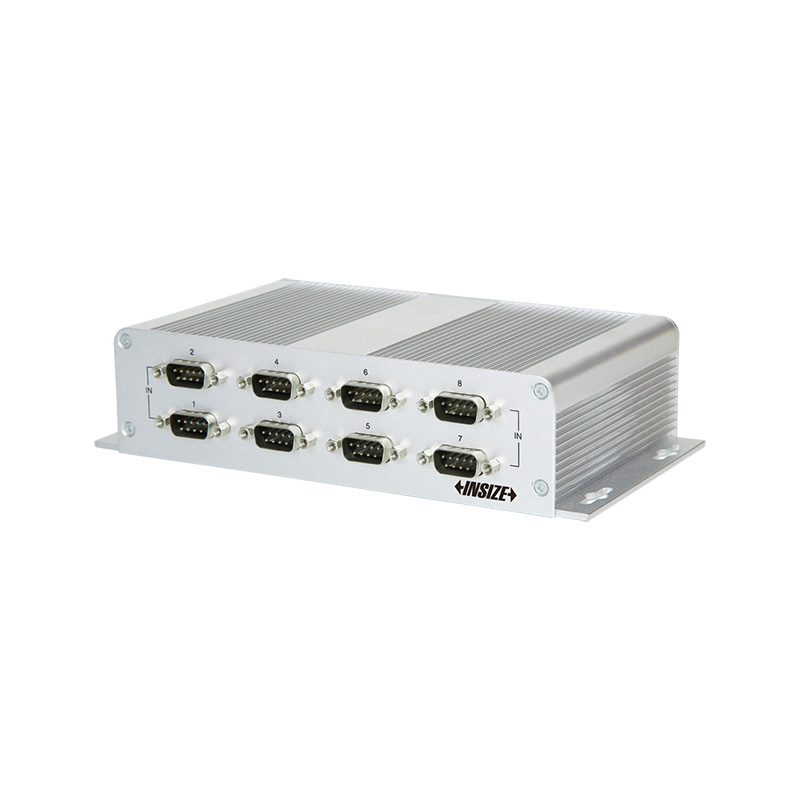

| 7107-2 | 8 pcs | RS232 and RS485 |
| 7107-3 | 4 pcs | RS232 and RS485 |
