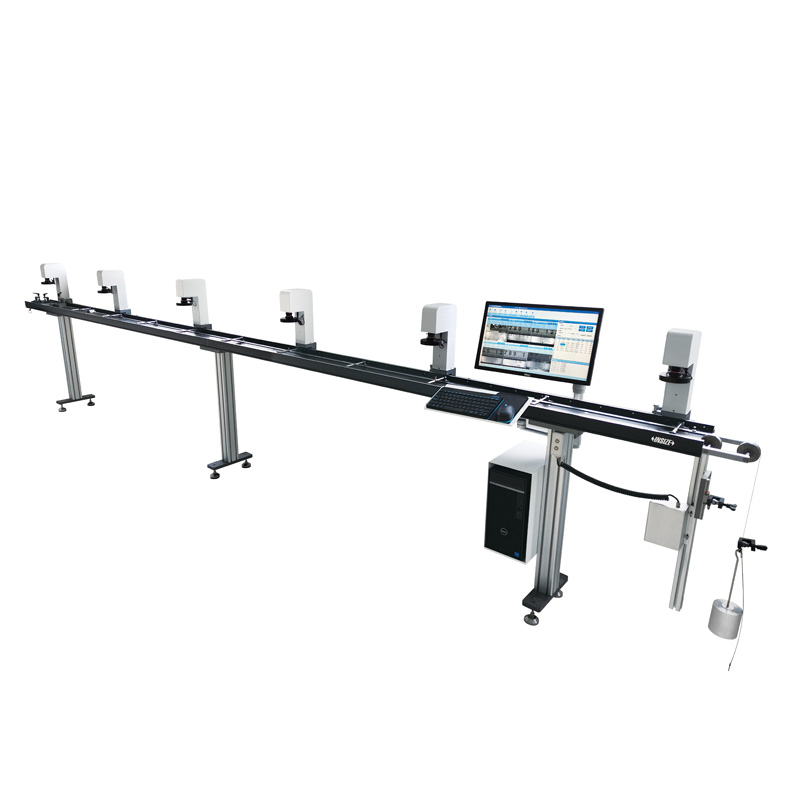

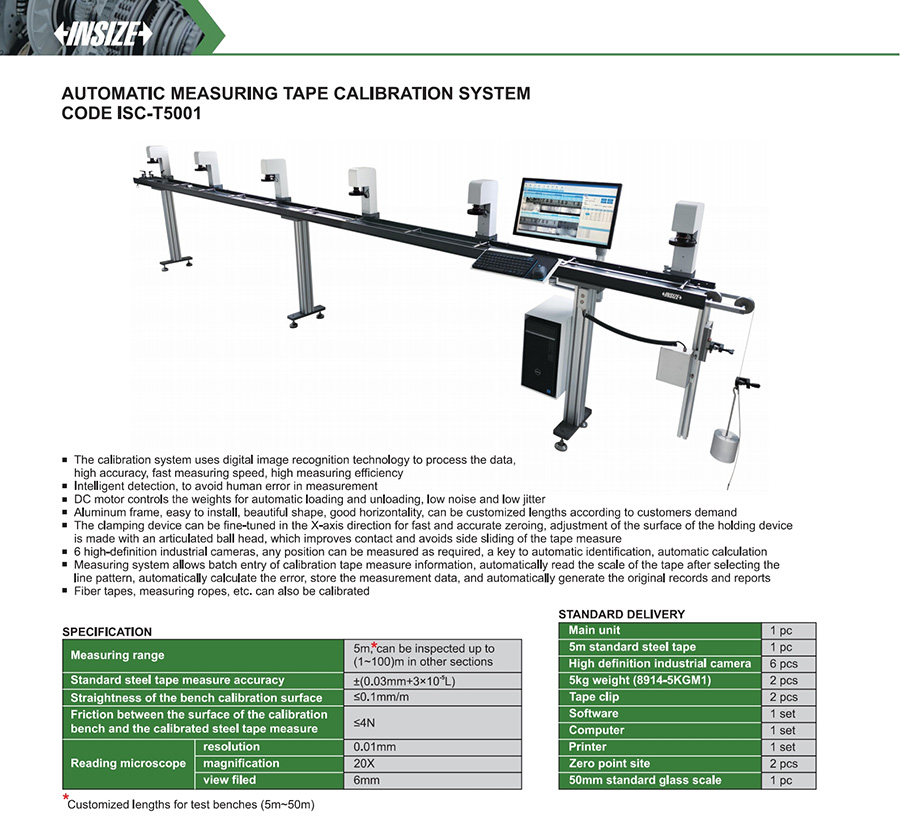

Automatic Measuring Tape Calibration System
Code: ISC-T5001
The calibration system uses digital image recognition technology to process the data, high accuracy, fast measuring speed, high measuring efficiency
Intelligent detection, to avoid human error in measurement
DC motor controls the weights for automatic loading and unloading, low noise and low jitter
Aluminum frame, easy to install, beautiful shape, good horizontality, can be customized lengths according to customer demand
The clamping device can be fine-tuned in the X-axis direction for fast and accurate zeroing, adjustment of the surface of the holding device is made with an articulated ball head, which improves contact and avoids side sliding of the tape measure
6 high-definition industrial cameras, any position can be measured as required, a key to automatic identification, automatic calculation
Measuring system allows batch entry of calibration tape measure information, automatically read the scale of the tape after selecting the line pattern, automatically calculate the error, store the measurement data, and automatically generate the original records and reports
| Code | Range | Straightness | Standard steel tape measure accuracy |
|---|---|---|---|
| ISC-T5001 | 5m, Customized lengths for test benches | ≤0.1 mm/m | ±(0.03 mm + 3×10⁻⁵L) |
