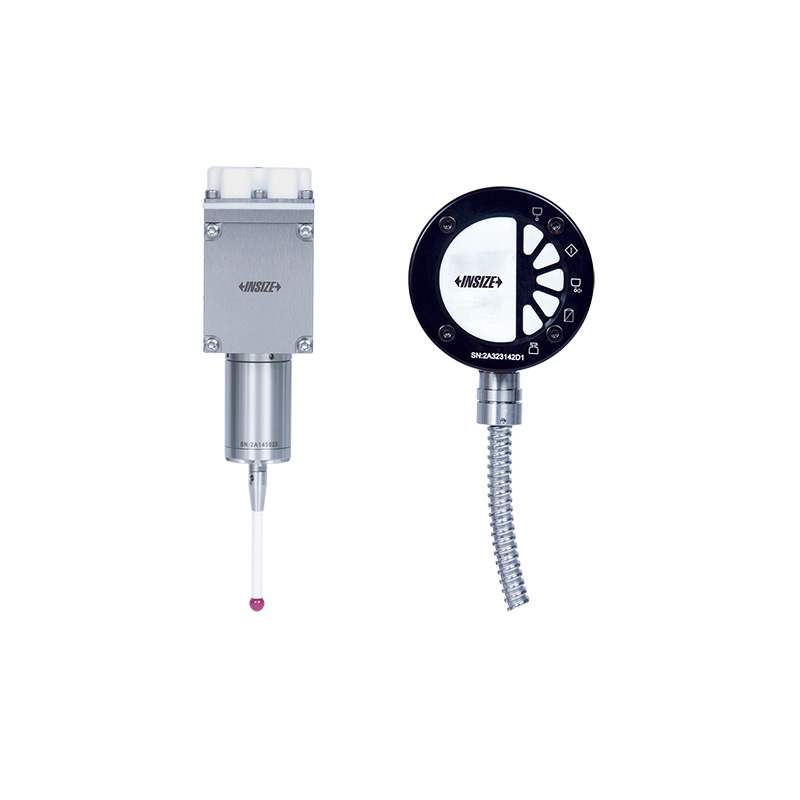

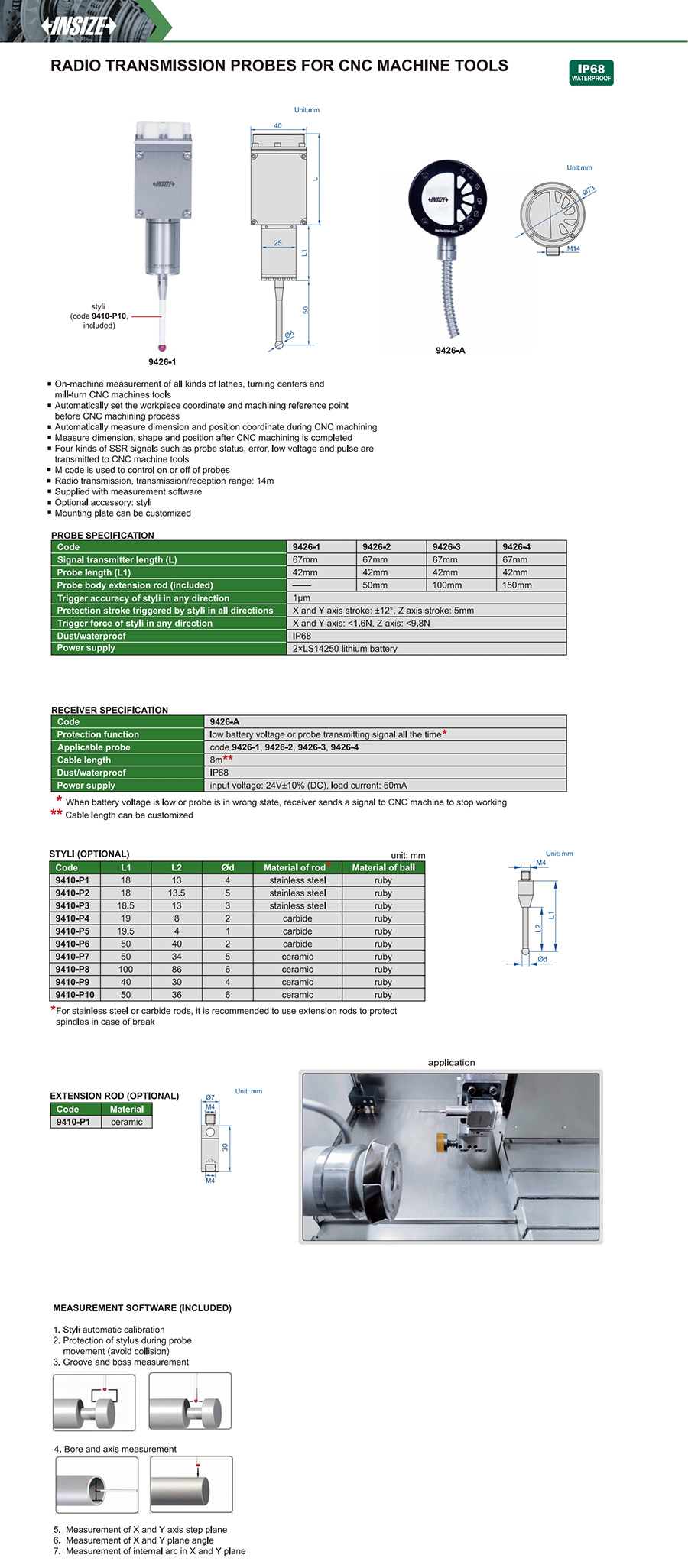

Radio Transmission Probes for CNC Machine Tools
Code: 9426
On-machine measurement of all kinds of lathes, turning centers and mill-turn CNC machine tools
Automatically set the workpiece coordinate and machining reference point before the CNC machining process
Automatically measure dimension and position coordinate during CNC machining
Measure dimensions, shape and position after CNC machining is completed
Four kinds of SSR signals such as probe status, error, low voltage and pulse are transmitted to CNC machine tools
M code is used to control on or off of probes
| Code | Protection stroke | Trigger force | Trigger accuracy |
|---|---|---|---|
| 9426-1 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: <1.6N, Z axis: <9.8N | 1μm |
| 9426-2 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: <1.6N, Z axis: <9.8N | 1μm |
| 9426-3 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: <1.6N, Z axis: <9.8N | 1μm |
| 9426-4 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: <1.6N, Z axis: <9.8N | 1μm |
View the complete
product specifications
