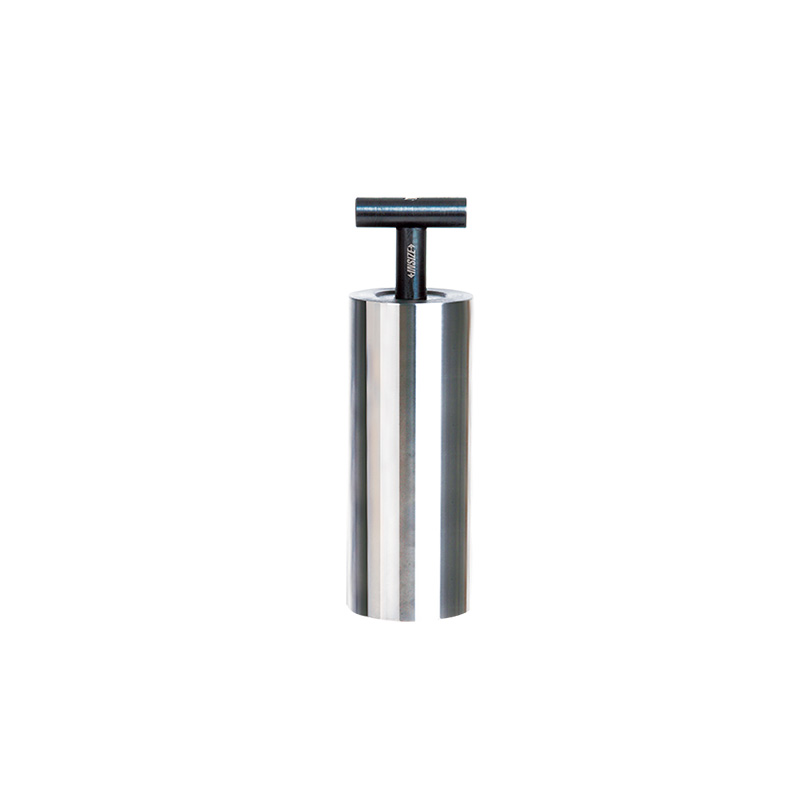

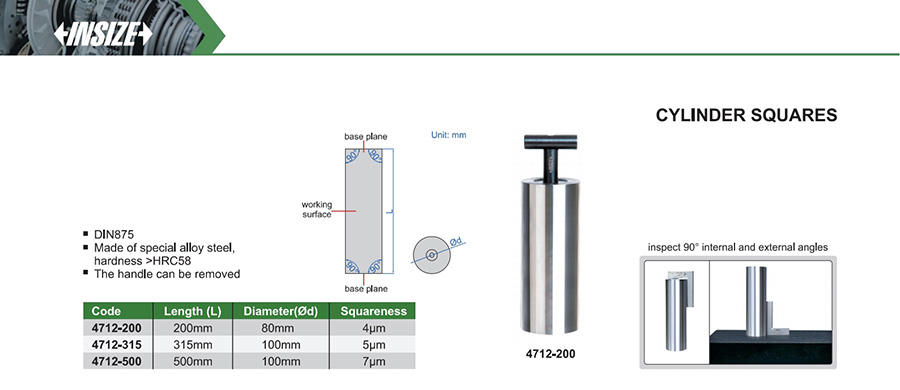

Cylinder Squares
Code: 4712
DIN875
Made of special alloy steel, hardness >HRC58
The handle can be removed.
| Code | Length | Squareness | Diameter (Ød) |
|---|---|---|---|
| 4712-200 | 200mm | 4μm | 80mm |
| 4712-315 | 315mm | 5μm | 100mm |
| 4712-500 | 500mm | 7μm | 100mm |
