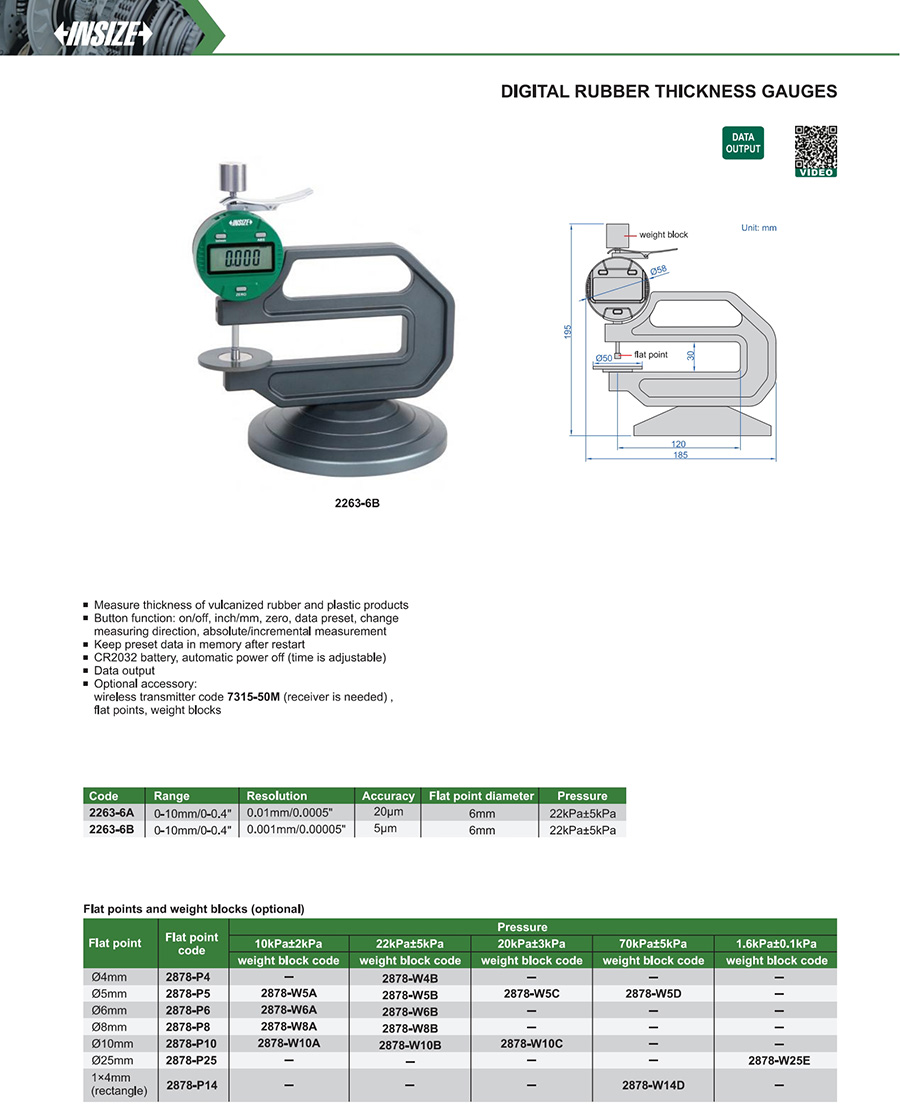

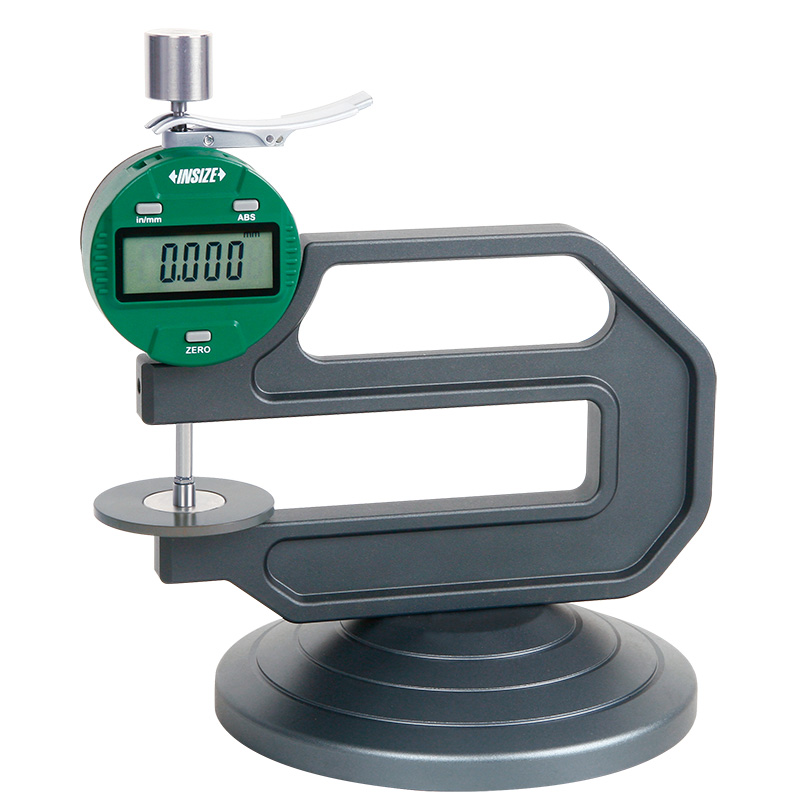

Digital Rubber Thickness Gauges
Code: 2263
Measure thickness of vulcanized rubber and plastic products
Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
Keep preset data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2263-6A | 0-10mm/0-0.4" | 20µm | 0.01mm/0.0005" |
| 2263-6B | 0-10mm/0-0.4" | 5µm | 0.001mm/0.00005" |
