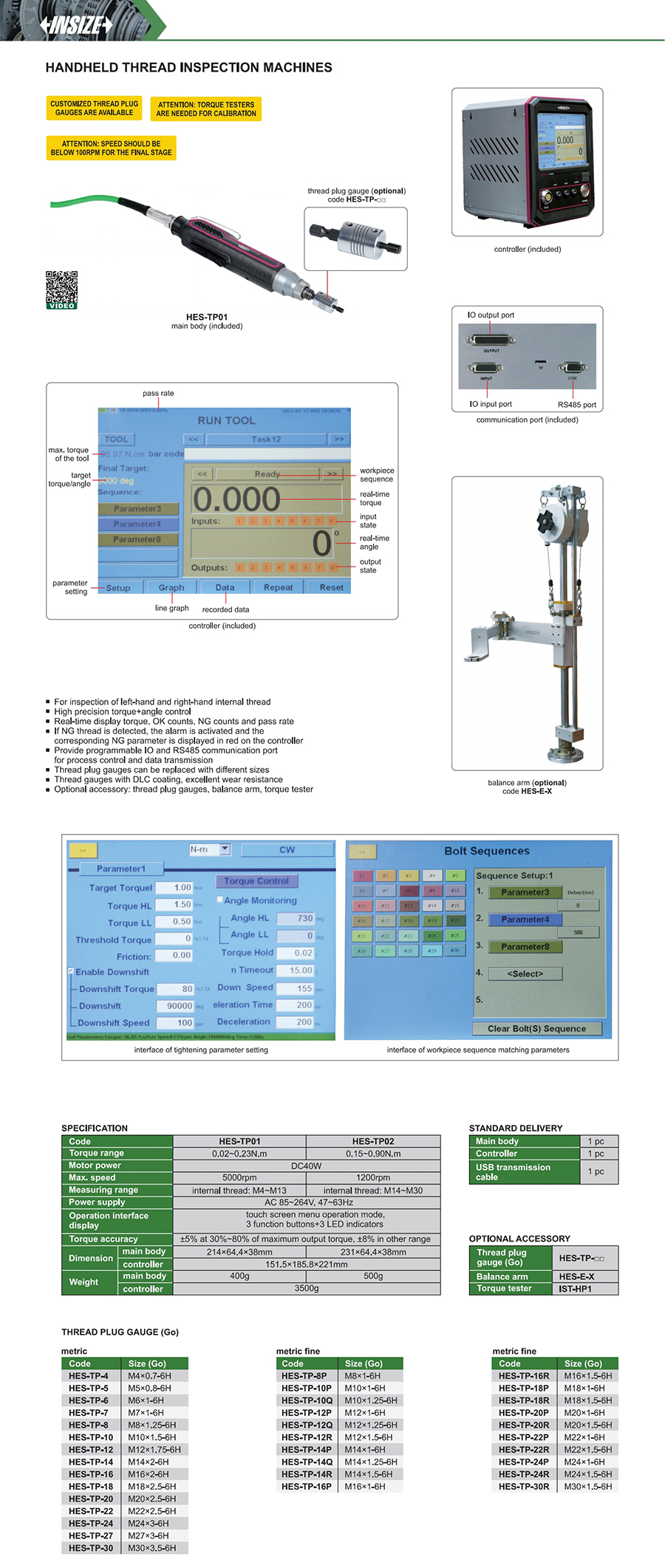

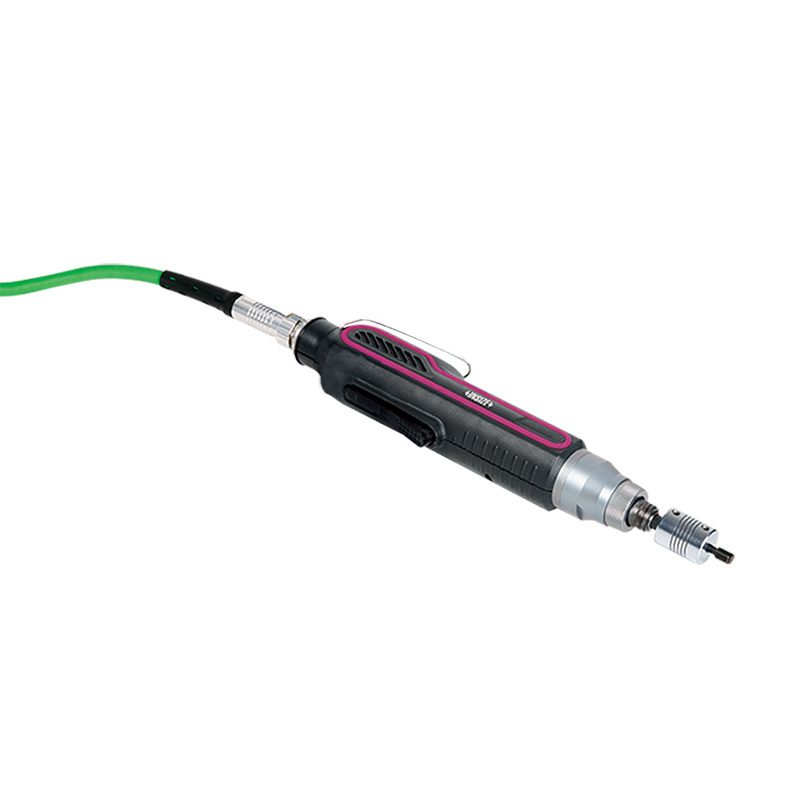

Handheld Thread Inspection Machines
Code: HES-TP series
For inspection of left-hand and right-hand internal threads
High precision torque+angle control
Real-time display torque, OK counts, NG counts and pass rate
If NG thread is detected, the alarm is activated and the corresponding NG parameter is displayed in red on the controller
Provide programmable IO and RS485 communication port for process control and data transmission
Thread plug gauges can be replaced with different sizes
Thread gauges with DLC coating, excellent wear resistance
Optional accessories: thread plug gauges, balance arm, torque tester
| Code | Range | Torque range |
|---|---|---|
| HES-TP01 | internal thread: M4~M13 | 0.02~0.23N.m |
| HES-TP02 | internal thread: M14~M30 | 0.15~0.90N.m |
