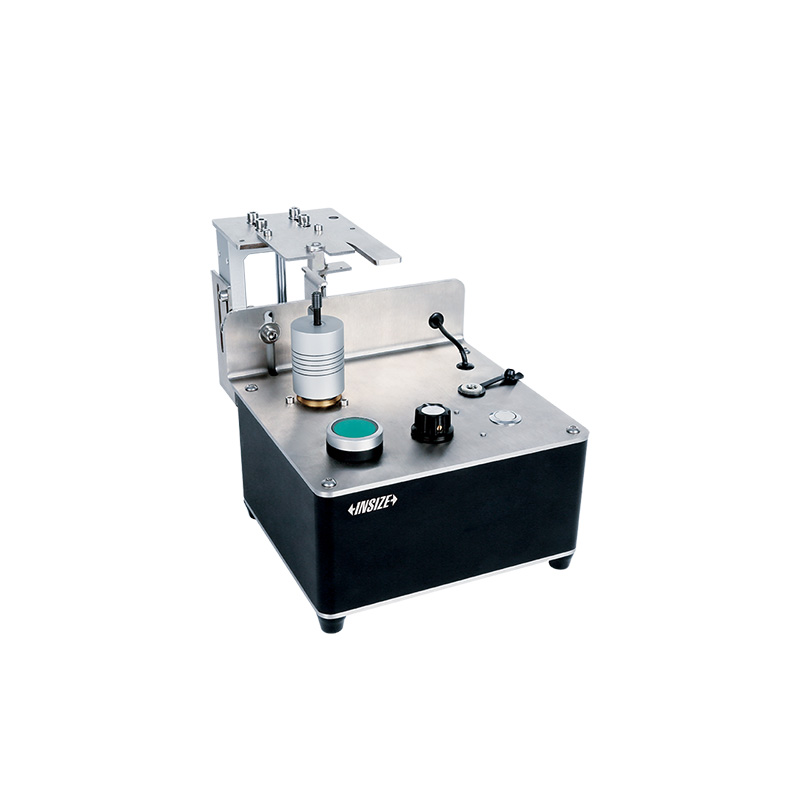

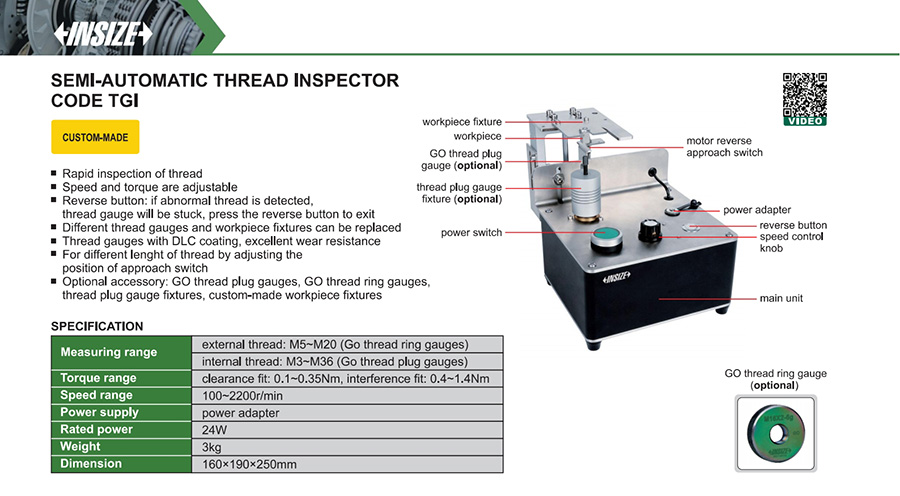

Semi-Automatic Thread Inspector
Code: TGI-T1D4
Rapid inspection of thread
Speed and torque are adjustable
Reverse button: if abnormal thread is detected, the thread gauge will be stuck, press the reverse button to exit
Different thread gauges and workpiece fixtures can be replaced
Thread gauges with DLC coating, excellent wear resistance
For different length of thread by adjusting the position of approach switch
Optional accessory: GO thread plug gauges, GO thread ring gauges, thread plug gauge fixtures, custom-made workpiece fixtures
| Code | Range | Torque range |
|---|---|---|
| TGI-T1D4 | external thread: M5~M20 (Go thread ring gauges), internal thread: M3~M36 (Go thread plug gauges) | clearance fit: 0.1~0.35Nm, interference fit: 0.4~1.4Nm |
View the complete
product specifications
