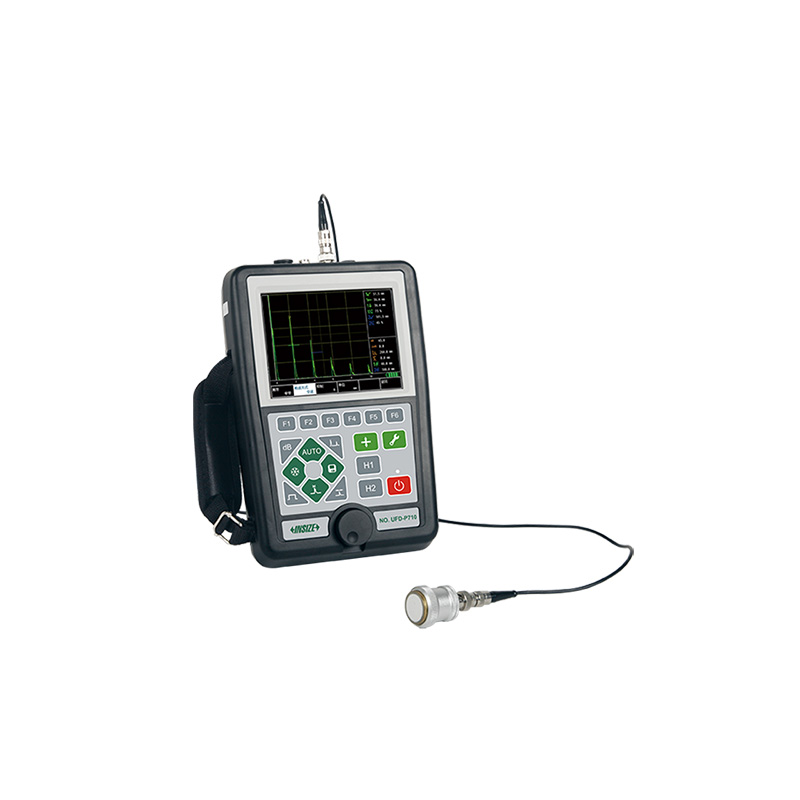

Digital Ultrasonic Flaw Detector (Advanced Type)
Code: UFD-P710
With fast, accurate display and analysis of defective echo signals, a variety of weak signal changes and details can respond in a timely manner, the real-time echo signal and authenticity can be effectively guaranteed
For the detection of high attenuation materials or thick workpiece has excellent penetration and letter ratio; sharp wave excitation technology and adjustable pulse width, pulse voltage, emission anisotropic square wave technology in the detection of thin workpiece and composite materials have a high resolution
FIR digital filtering technology better signal-to-noise ratio; probe frequency harmonic analysis, can better analyze the probe performance information
| Code | Range | Frequency | Vertical linearity | Horizontal linearity | Dynamic range | Resolving power | Sensitivity leavings |
|---|---|---|---|---|---|---|---|
| UFD-P710 | 0~10000mm | 0.5~20MHz | ≤3.0% | ≤0.4% | ≥32dB | >26dB (2.5P20) | >62dB (200Ø2 flat bottom hole, narrow band) |

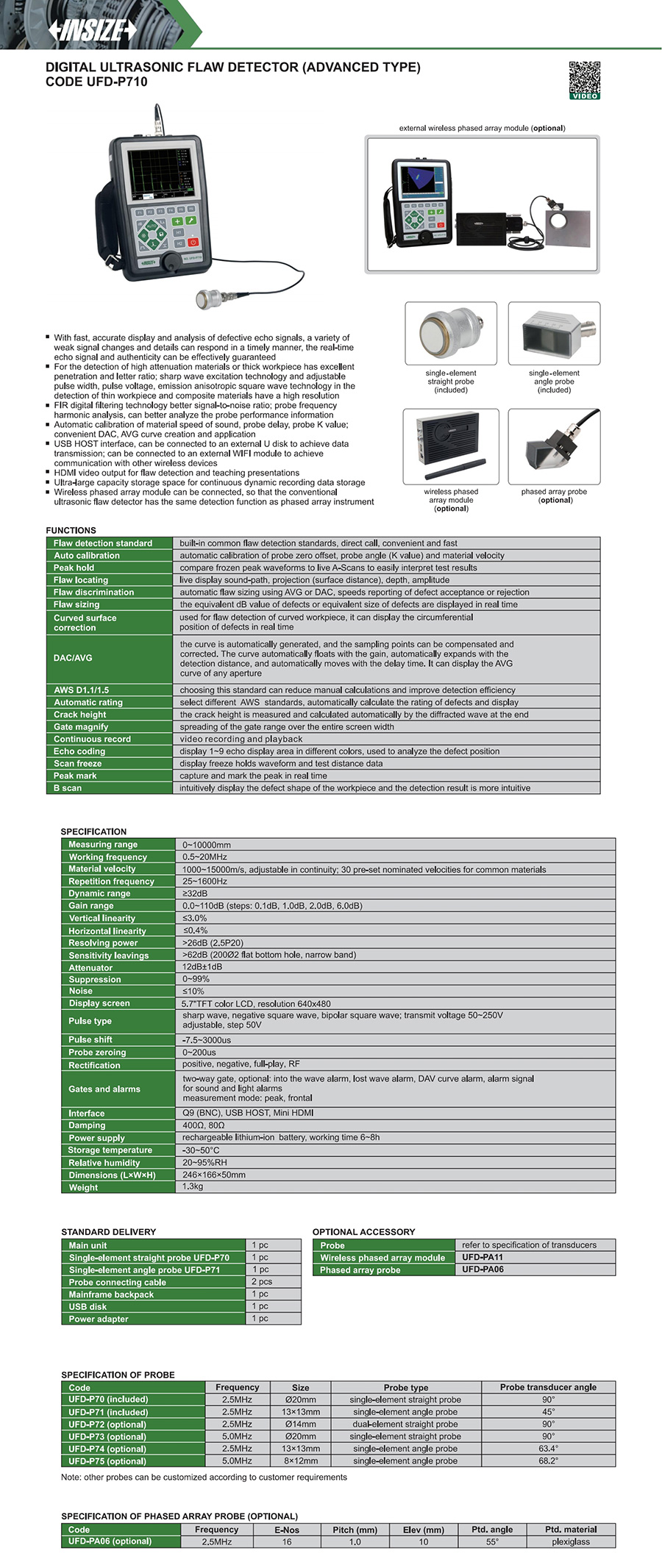

View the complete
